PU Elastomers from SGO Polymerized Acrylic Polyols

Patent Title: PHYSICAL PROPERTY IMPROVEMENT OF POLYURETHANES

 Number/Link: WO2018/132648

Applicant/Assignee:  BASF

Publication date: 19 July 2018

Gist”: Solvent-free acrylate polyols are reacted together with polyether polyols and diisocyanates

Why it is interesting: In this invention a solvent-free (“100% solids” in the patent’s terminology) acrylic polyol is blended with a conventional polyether polyol and reacted with an aliphatic or aromatic diisocyanate.  The acrylic polyol is prepared by co-polymerizing (e.g.)  ethyl- or butyl (meth)acrylates, styrene and a hydroxyl functional acrylate like 2-hydroxyethyl acrylate or 4-hydroxybutyl acrylate, using BASF’s “solid grade oligomer” (SGO) polymerization process. The SGO process is a high temperature and high pressure continuous process allowing for the production of low-solvent acrylic resins. The polyurethanes are said to have increased physical properties, esp. tear- and tensile strength properties.

HBA

Hydroxybutylacrylate

Aerogels from Urethane-Acrylate Star Monomers

Title: FLEXIBLE TO RIGID NANOPOROUS POLYURETHANE-ACRYLATE (PUAC) TYPE MATERIALS FOR STRUCTURAL AND THERMAL INSULATION APPLICATIONS

 Number/Link:US2015/0266983

Applicant/Assignee: University of Missouri

Publication date: 24-09-2015

Gist”: A trifunctional acrylate-ended urethane monomer is polymerized in solvent and supercritically dried

Why it is interesting: Research related to nanoporous materials has been gaining significant momentum in recent years and both inorganic (usually silica-based) and organic (e.g resorcinol-formaldehyde or polyurethane -based) aerogels are increasingly being used especially for thermal insulation applications. The current invention relates to hybrid PU-AC aerogels prepared from acrylate functional “star” monomers. The monomers are made by reacting a tris(isocyanatoaryl)methane with one or more hydroxyacrylates in a suitable solvent.  The monomer is then radically polymerized and the resulting ‘wet’ gel is supercritically dried into an aerogel. In the examples tris(4-isocyanatophenyl)methane is reacted with 2-hydroxyethylacrylate in ethyl acetate. The monomer solution is polymerized by heating with a radical initiator and the resulting gel is then dried using acetone and supercritical CO2.  The resulting aerogels have a density ranging from about 135 to 650 kg/m³ with a porosity bewteen 90 and 50% (v/v).  The lower density aerogels are flexible and have a thermal conductivity of about 40 mW/m.K.

Star monomer according to the invention

Star monomer according to the invention

Urethane-Acrylate Hybrids From Thiol-Ene Chemistry

Title: POLYURETHANE (METH) ACRYLATES USING MODIFIED HYDROXYTHIOLS

 Number/Link: US2015/0232422

Applicant/Assignee: Dymax Oligomers and Coatings

Publication date: 20-08-2015

Gist”: A dihydroxythiol is reacted with an acrylate and then with diisocyanate and hydroxyacrylate

Why it is interesting: This invention relates to radically polymerizable urethane oligomers which are useful as adhesives or coatings. The oligomers are prepared in two stages:  first a dihydroxy thiol is reacted with an acrylate resulting in a diol which is then reacted with an excess diisocyanate and then with hydroxyacrylates.  For example: thioglycerol is reacted with phenyltioethylacrylate.  The resulting diol is then further reacted with TDI and subsequently with polycaprolactonacrylate and hydroxyethylacrylate resulting in the structure below. The urethane oligomers can be used for coatings or adhesives which are said to have improved properties over the existing art, like improved thermal resistance.

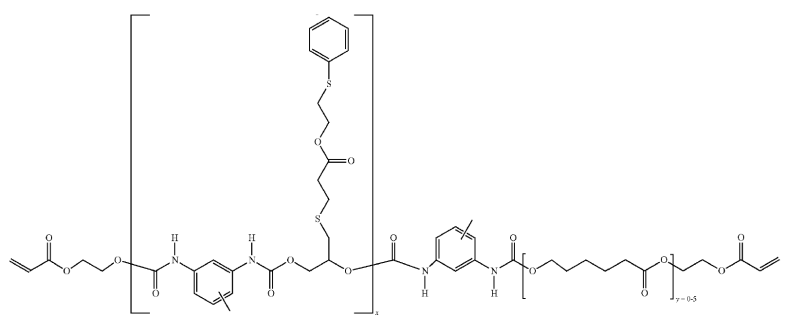

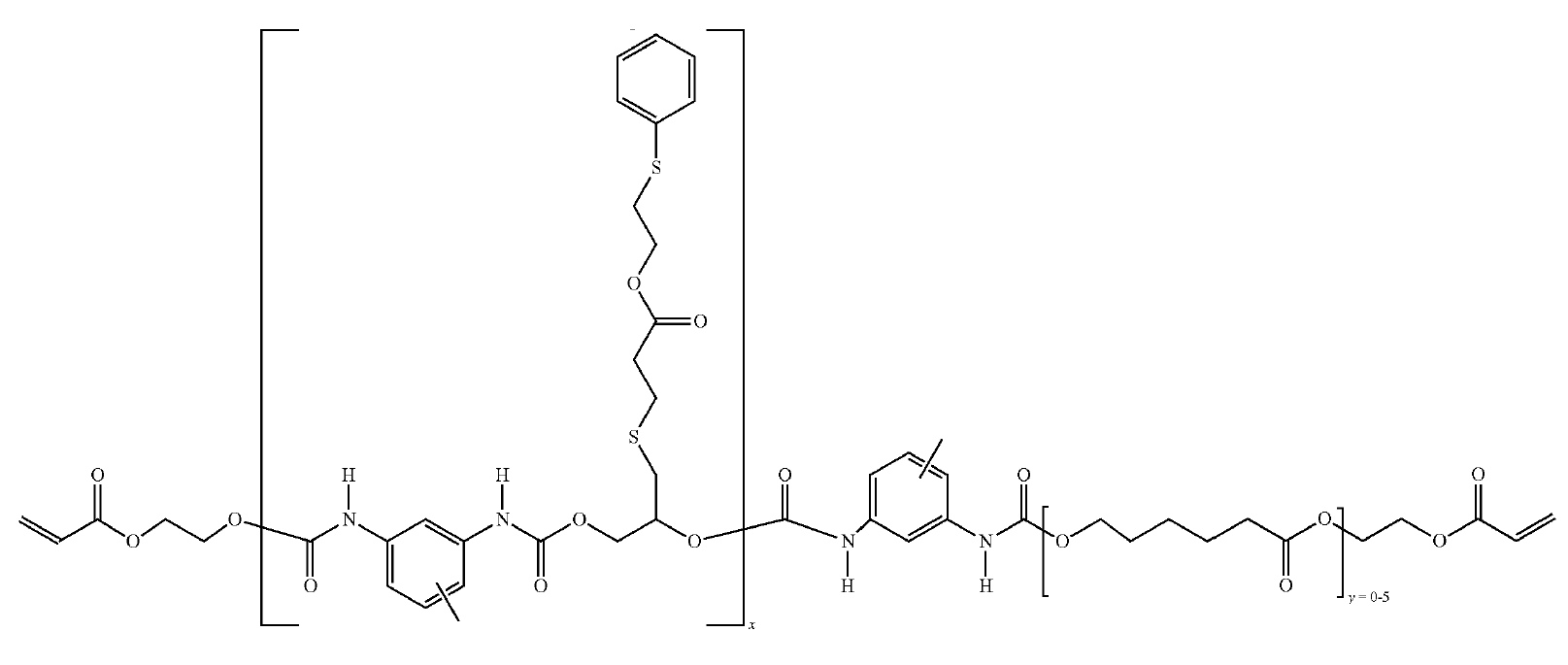

A urethane-acrylate oligomer according to the invention

A urethane-acrylate oligomer according to the invention
