All posts by Gerhard Bleys

Calixarene-Based Self-Healing Polyurethane Coatings

Patent Title: CALIXARENE-TYPE PHOTOCURABLE POLYURETHANE RESIN AND SELF-REPAIRING COATING PREPARED THEREFROM

 Number/Link: WO2018/205208  (Chinese)

Applicant/Assignee:  Jiangnan Univ.

Publication date: 15 November 2018

“Gist”: A coumarine-containing prepolymer is reacted with calixarene

Why it is interesting: UV-curable and self-healing polyurethanes containing coumarine groups have been discussed before in this blog. In the current invention, an isocyanate-ended prepolymer is partially capped with coumarine groups.  The remaining NCO groups are then reacted with a calixarene to form a core-shell type material that can be used in UV curable coatings with improved hardness and self-healing characteristics.

Calixarene-based polyurethane according to the invention

Leave a comment
by Gerhard Bleys on November 16, 2018  •  Permalink
Posted in Uncategorized

Posted by Gerhard Bleys on November 16, 2018

https://purpatents.com/2018/11/16/calixarene-based-self-healing-polyurethane-coatings/

Polyurethane-Graphene Composite

Patent Title: POLYURETHANE FILM COMPRISING GRAPHENE AND PREPARATION PROCESS THEREOF.

 Number/Link: WO/2018/202747

Applicant/Assignee:  Directa Plus

Publication date: 8 November 2018

“Gist”: A PU film containing graphene nano-platelets

Why it is interesting: The invention is about polyurethane-graphene nanocomposites useful as films in textiles for clothing and medical applications. The films are prepared by incorporating into a (commercially available) PU resin, 1-30% (w/w) of graphene nano platelets together with 0.1-5% of (pref.) silica particles as a blocking agent and a solvent to adjust viscosity.  The composition is cured on a flat support as a film of 10 to 100µm thick. It is said that the PU films can a.o. have improved breathability, thermal conductivity, electrical conductivity and antibacterial activity.

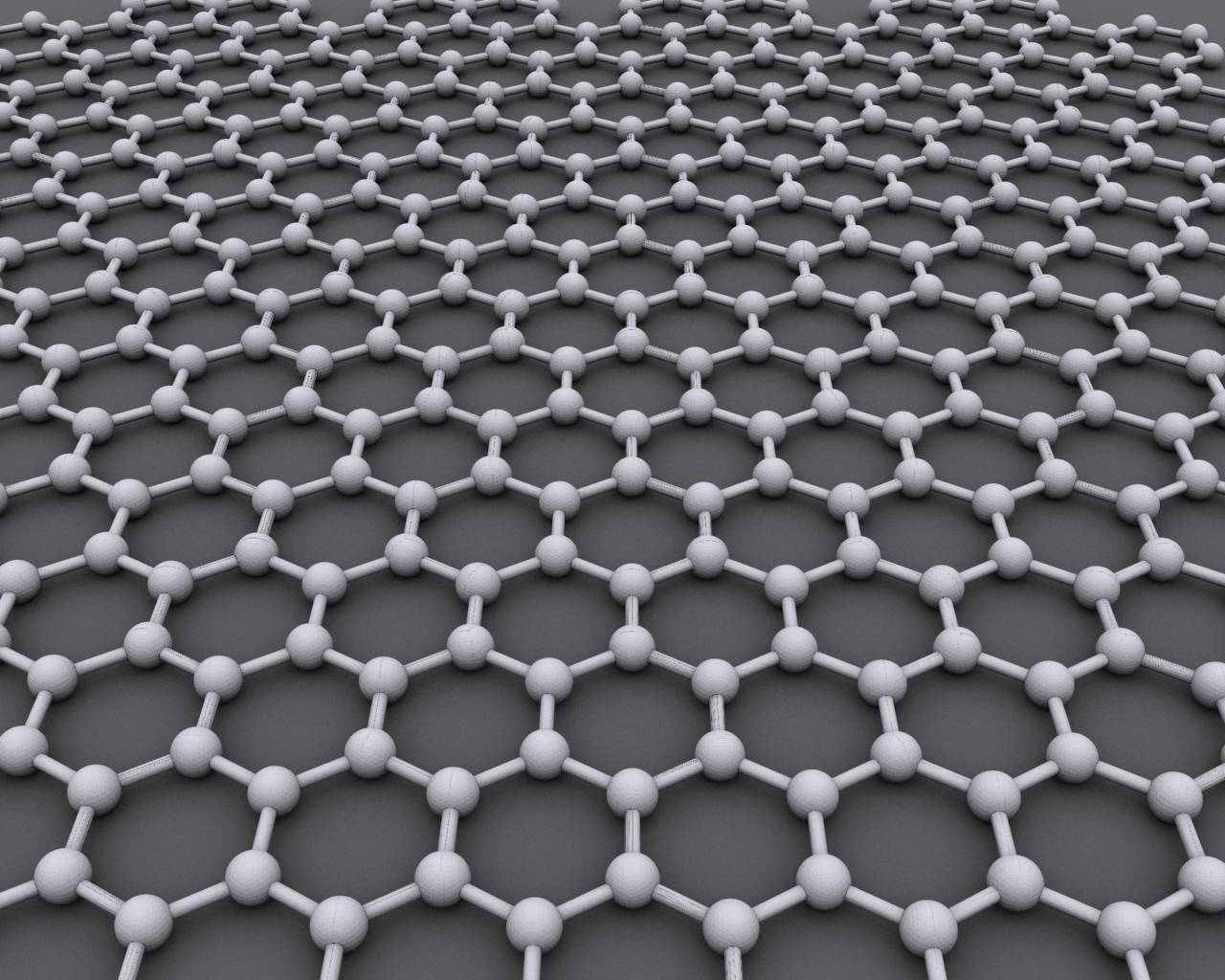

Graphene

Graphene (Wikipedia)





Leave a comment
by Gerhard Bleys on November 12, 2018  •  Permalink
Posted in composites, Elastomers
Tagged , , , , ,

Posted by Gerhard Bleys on November 12, 2018

https://purpatents.com/2018/11/12/polyurethane-graphene-composite/

PU Elastomers with Extremely High Elongation

Patent Title:  Polyurethane Elastomer with High Ultimate Elongation

 Number/Link: US2018/0312623

Applicant/Assignee:  UNIV PENNSYLVANIA

Publication date: 1 November 2018

“Gist”: Low hardblock polyurethane-polyurea elastomers are prepared from low unsat diols, HDI and a bulky diamine chain extender

Why it is interesting: The current invention relates to PU  elastomers which are said “to  have the highest reported elongation-at-break among known polyurethane elastomers“. The materials are prepared from an NCO-ended prepolymer consisting of a low unsaturated, low dispersity diol and a symmetric diisocyanate (i.e. no 4,4′-MDI), which is reacted with a “bulky” diamine chain extender. In the examples Acclaim 4200 (polyether diol with OHv 28) is used together with HDI and 2-methyl-1,5-pentanediamine. The elastomer showed an elongation at break of more than 2000%.
Because these materials have a low- and non-aromatic hardblock content, it is my opinion that they show creep rather than elasticity.

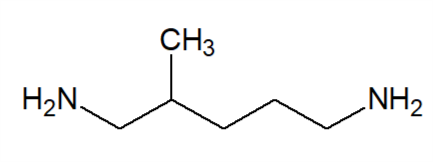

methylpentandiamine

2-methyl-1,5-pentanediamine

Leave a comment
by Gerhard Bleys on November 2, 2018  •  Permalink
Posted in Elastomers
Tagged , , , , ,

Posted by Gerhard Bleys on November 2, 2018

https://purpatents.com/2018/11/02/pu-elastomers-with-extremely-high-elongation/

« Older Posts
Newer Posts »

  • Pages

  • Categories

  • Enter your email address to follow this blog and receive notifications of new posts by email.

    Join 259 other subscribers
